What are sheaves on a crane?

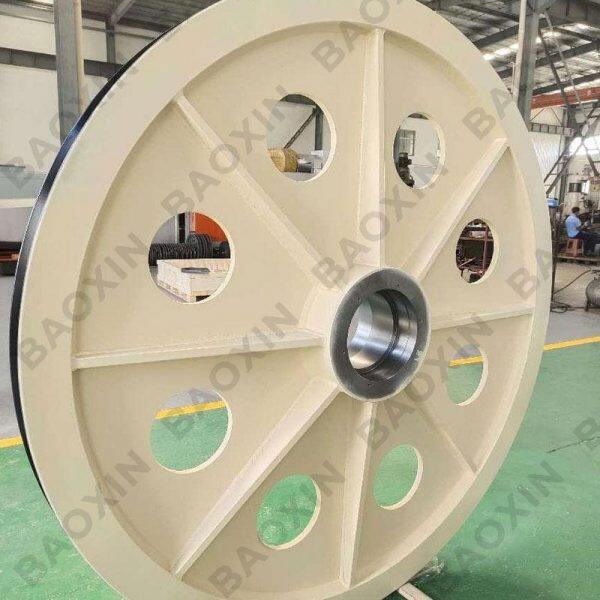

Introduction: The Critical Role of Crane Sheaves

In modern construction and industrial operations, crane sheaves serve as the mechanical backbone of lifting systems, enabling directional force transformation and load distribution. From port crane operations to skyscraper construction, the precision of sheave systems directly impacts equipment efficiency and safety.

1. Basic Components and Working Principles

1.1 Mechanical Foundation: Fixed vs. Movable Sheaves

Crane sheave systems consist of fixed sheaves (fixed sheaves crane) and movable sheaves (movable sheaves crane). Fixed sheaves mounted on stationary axes primarily change force direction, while movable sheaves reduce required force by 50% through load-sharing. A case study shows that using double movable sheaves in 32-ton lifting reduces actual tension to 16 tons with a 6x safety margin.

1.2 Force Optimization Through Sheave Groups

Modern tower cranes utilize sheaves in crane systems with multi-rope configurations. In a 5.3-ton steel beam lifting project, optimized sheave groups enabled dual-crane cooperation to reduce tension to 2.65 tons while improving efficiency by 40% – fully compliant with JGJ276-2012 standards.

2. Key Technical Parameters for Selection

2.1 Diameter Matching Criteria

According to GB/T 2089-2016, the ratio between sheave diameter (D) and wire rope diameter (d) must meet:

• Overhead cranes: D ≥ 20d
• Jib cranes: D ≥ 12d
  An automotive plant’s maintenance ditch adopted a “movable sheave + electronic scale” system, achieving safe solo lifting of 300kg gearboxes through precise diameter matching.

2.2 Material and Manufacturing Standards

Premium crane sheaves use cast steel or ductile iron with surface hardness HRC45-50. Precision machining ensures groove roughness ≤Ra3.2μm, minimizing rope wear. Port machinery testing showed laser-hardened sheaves achieved 2.3x longer service life compared to conventional castings.

3. Installation, Maintenance, and Safety

3.1 Daily Inspection Checklist

• Groove wear: Replace when radial wear exceeds 30% of rope diameter
• Axial clearance: Lateral movement ≤ D0/1000 (D0 = nominal sheave diameter)
• Lubrication: Replenish #2 extreme pressure lithium grease every 500 operating hours

3.2 Replacement Criteria

Immediate replacement required for:

• Uneven groove wear ≥3mm
• Groove wall thickness reduced to 80% of original
• Crack propagation exceeding 10% of rim circumference

4. Baoxin’s Sheave Solutions Advantage

As a professional crane sheave supplier, Baoxin delivers:

1. Precision Manufacturing: 5-axis CNC machining ensures hole tolerance ≤0.02mm
2. Material Innovation: High-strength nylon composites reduce weight by 40% while maintaining load capacity
3. Smart Selection: Proprietary software generates optimized configurations from load parameters
4. Rapid Response: 15-day delivery for custom orders with ample standard inventory

Conclusion: The Importance of Professional Suppliers

As cranes evolve toward larger scales and smarter systems, sheave reliability becomes paramount for safety and efficiency. With two decades of expertise, Baoxin adheres to ISO 9001 standards while advancing “precision manufacturing, safety first” principles. Our global clients trust us for crane sheaves that meet the most demanding operational requirements.
