What is a Spiral Bevel Gear?

In the world of power transmission, bevel gears play a vital role when rotational axes need to change direction. Among the various types of bevel gears, the spiral bevel gear stands out as the preferred choice for demanding transmission applications due to its superior performance. As a core component in precision transmission systems, understanding how spiral bevel gears work and their advantages is crucial for selecting the right transmission solution.

A spiral bevel gear is a precision gear used to transmit power and motion between intersecting shafts (typically at a 90-degree angle, but other angles are possible). Its most distinctive feature is its curved, spiral-shaped teeth, unlike the straight teeth parallel to the gear axis found on straight bevel gears. This unique design grants it significant performance advantages over straight bevel gears. This article delves into the structure, working principles, key benefits, and wide-ranging applications of spiral bevel gears.

01 Anatomy of Structure: The Secret of the Curved Tooth

The core of a spiral bevel gear lies in its unique tooth design. Imagine its teeth are not straight up and down like a ladder, but curved like a road winding up a mountainside.

Spiral Tooth Line: This is the fundamental difference from straight bevel gears. The tooth line extends along the tooth face as a curved arc, typically with a constant spiral angle (common range 35°-40°). This design mimics the efficiency and fluidity of spirals found in nature.
Involute Tooth Profile: Similar to many other gears, spiral bevel gears usually employ an involute tooth profile. This curve shape ensures constant transmission ratio and smoothness during meshing.

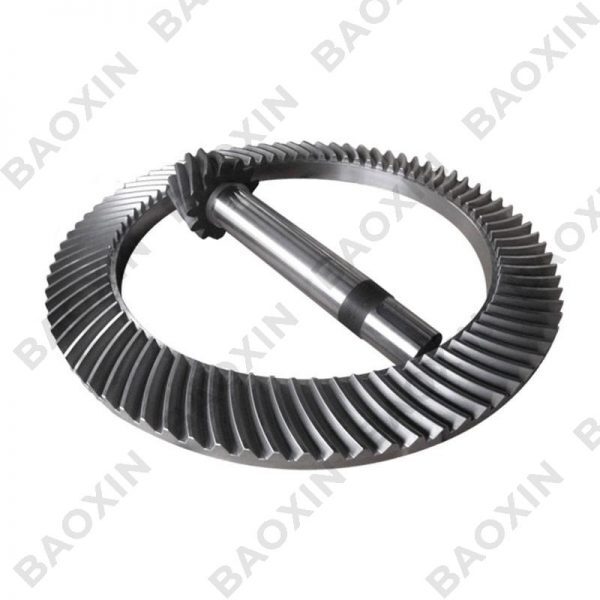

Matched Pair: Spiral bevel gears are always designed and manufactured as a matched pair – one driving pinion (small gear) and one driven gear (large gear). The gears have equal magnitude spiral angles but opposite directions (one left-hand, one right-hand), fitting together like perfectly complementary pieces.
Precise Geometric Parameters: Beyond the spiral angle, performance relies on other critical parameters like tooth height, pressure angle, face width, and pitch cone angle. Precise calculation and machining of these parameters are fundamental for achieving efficient, smooth, and quiet transmission.

This curved tooth structure forms the physical basis for all the superior performance characteristics of spiral bevel gears.

02 Working Principle: Smooth Power Transfer Through Multi-Tooth Engagement

The power transmission process of spiral bevel gears exemplifies the ingenuity of their design:

Progressive Engagement: When a pair of spiral bevel gears mesh, contact does not occur instantly at a single point. Instead, it starts at one end of the tooth (near the root or tip) and gradually extends along the tooth length.
Continuous Contact: During meshing, more teeth are typically in contact simultaneously compared to straight bevel gears. The spiral design ensures that as one tooth is about to disengage, the next tooth has already started to engage, creating a seamless transition.
Sliding and Rolling: At the point of tooth contact, both rolling and sliding motions occur. Rolling transmits the main torque, while sliding is an inevitable byproduct, making effective lubrication critical.
Axial Thrust Generation: The presence of the spiral angle causes the gears to generate axial thrust (along the gear axis) when transmitting torque. This must be carefully considered in bearing selection and structural design, usually requiring bearings capable of handling axial loads (like tapered roller bearings).

This mechanism of progressive engagement and multi-tooth contact is the core secret behind the smooth, quiet, and high-load-capacity transmission achieved by spiral bevel gears.

03 Unparalleled Advantages: Why Choose Spiral Bevel Gears?

Compared to traditional straight bevel gears, spiral bevel gears offer significant advantages, making them stand out in demanding applications:

Exceptional Smoothness & Low Noise: The characteristics of progressive engagement and simultaneous multi-tooth contact drastically reduce meshing impact and vibration. Power transfer is silky smooth, resulting in significantly lower operating noise. This is particularly important for equipment requiring quiet environments (e.g., precision machine tools, high-end automobiles).
Higher Load Capacity: Due to the larger contact area and load sharing among multiple teeth, spiral bevel gears can handle higher torque and heavier loads. Within the same installation space, their power density far exceeds that of straight bevel gears.
Longer Service Life: Smoother meshing means lower impact stresses, and a larger contact area reduces pressure per unit area. Together, this results in reduced tooth wear and longer fatigue life, lowering maintenance frequency and costs.
Higher Transmission Efficiency: Although sliding friction exists, the overall transmission efficiency is typically better than or equal to straight bevel gears due to the smoother engagement process and lower impact losses, especially noticeable at high speeds.
Suitability for High Speeds: Their smoothness makes them particularly well-suited for high-speed rotation, whereas straight bevel gears tend to generate significant noise and vibration at high speeds.

These advantages make spiral bevel gears the ideal choice for intersecting shaft transmissions requiring high efficiency, high reliability, low noise, and high load capacity.

04 Application Areas: Ubiquitous Efficient Power Steering

Leveraging their outstanding performance, spiral bevel gears are widely used in areas requiring a change in power transmission direction with high performance demands:

Automotive Industry: One of the largest markets. The automotive drive axle (differential) is a core application, transferring engine power from the driveshaft (longitudinal) to the wheels (transverse). High-performance vehicles especially rely on their high load capacity and smoothness.
Industrial Machinery:
- Heavy Equipment: Drive axles and slewing mechanisms of cranes, excavators, loaders.
- Machine Tools: Indexing mechanisms and power transmission components in milling machines, boring machines, gear cutting machines, requiring extreme precision and quiet operation.
- Power Transmission Systems: Key drive components in large industrial gearboxes, such as those in steel rolling mills and mining machinery.
Aerospace: Aircraft engine accessory drive systems, helicopter main/tail rotor gearboxes, where weight, reliability, and power density requirements are extremely high.
Marine Industry: Ship propulsion systems, steering gear transmissions.
Energy Sector: Key transmission components in wind turbine yaw and pitch drive systems.
Railway Locomotives: Locomotive drive systems.
Agricultural Machinery: Drive axles and power take-off (PTO) units in tractors and harvesters.
Robotics: Power transmission at precision joints, demanding compactness, efficiency, and smoothness.

It can be said that wherever powerful, quiet, and reliable redirection of power is needed, spiral bevel gears are likely present.

05 Manufacturing Challenges & Baoxin’s Solutions: Precision Achieves Excellence

Manufacturing high-quality spiral bevel gears is a technology-intensive challenge, involving complex geometry calculations, precision machining equipment, and strict quality control:

Design & Simulation: Requires specialized gear design software for precise modeling, strength calculations, and meshing simulation to ensure optimal theoretical performance.
Material Selection: Commonly uses high-quality alloy steels (e.g., 20CrMnTi, 20Cr2Ni4A), processed through heat treatments like carburizing and quenching to achieve very high surface hardness (e.g., 58-62 HRC) for wear resistance, while maintaining a tough core for impact resistance.
Precision Machining:
- Gear Cutting: Uses dedicated spiral bevel gear generators or hobbing machines (e.g., Gleason, Klingelnberg) – this is the key process for forming the precise spiral tooth shape.
- Gear Grinding: For gears requiring extreme precision and surface finish, grinding is an essential finishing process, significantly improving fatigue strength and reducing noise.
Heat Treatment: Precise control of carburizing depth, hardness, and microstructure is critical to avoid distortion and cracks.
Inspection & Quality Control: Utilizes gear measuring centers for comprehensive inspection of tooth profile, lead, pitch, etc., ensuring compliance with high-precision standards (e.g., AGMA, DIN, GB/T 11365).

Baoxin Company (Baoxin Gear), a deep-rooted player in the precision gear manufacturing field, possesses extensive expertise in the R&D and production of spiral bevel gears:

Technical Expertise: Masters advanced design and manufacturing processes, capable of producing spiral bevel gears meeting high international and domestic standards.
Machining Capabilities: Equipped with advanced machinery, including large spiral bevel gear generators, enabling the machining of large-diameter gears (website information indicates capability up to Φ2000mm / 2000mm diameter) to meet heavy machinery demands.
Quality Assurance: Implements a strict quality management system and utilizes precision inspection instruments to ensure every spiral bevel gear shipped is reliable and durable.
Application Experience: Products are widely used in engineering machinery, mining equipment, metallurgy, port machinery, and more, accumulating rich application cases and solutions.

Conclusion

The spiral bevel gear, with its design featuring curved, spiral teeth enabling progressive multi-tooth engagement, delivers exceptional transmission smoothness, low noise, high load capacity, and long service life. It is a core solution for efficiently and reliably transmitting power between intersecting shafts in modern industry. From speeding cars to roaring heavy machinery, from soaring aircraft to precise machine tools, its presence is ubiquitous. Understanding its principles and advantages is key to selecting the right power transmission solution. For demanding applications, partnering with a professional gear supplier like Baoxin, equipped with robust design capabilities, precision manufacturing, and stringent quality control, is essential for ensuring the long-term stable and efficient operation of equipment.
